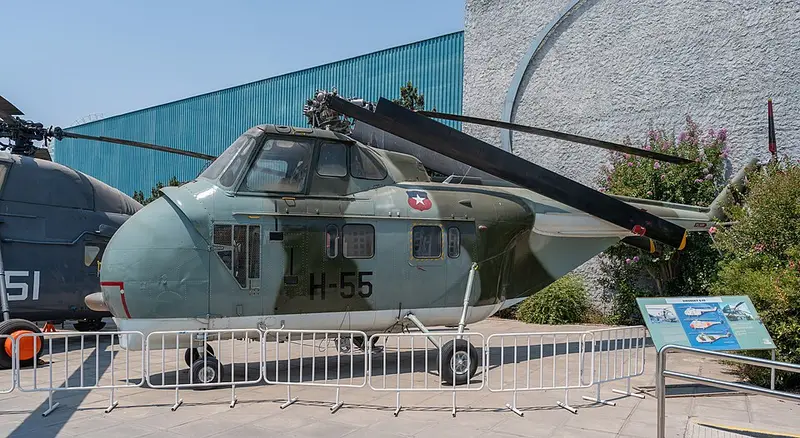

Sikorsky S-55T
The Sikorsky S-55T was a turbine conversion of the S-55/H-19 transport helicopter, replacing its radial piston engine with a more reliable turboshaft. The conversion improved power and reduced maintenance while retaining the spacious cabin created by the original nose-engine layout. It gave 1950s airframes a useful second career in commercial utility and offshore work. The turbine S-55 is far rarer than the standard piston-powered H-19.
Did you know?
The S-55T is a turbine conversion of the H-19 Chickasaw, replacing its radial piston engine while keeping the spacious nose-engine cabin layout.
Specifications
| Length | 14.3 m (47 ft) |
|---|---|
| Height | 4.1 m (13 ft) |
| Rotor diameter | 16.2 m (53 ft) |
| Maximum passengers | 10 |
| Persons on board | 12 |
| Crew | 2 |
| Maximum take-off weight | 3.2 t |
| Range | 400 NM (741 km) |
| Maximum speed | 120 kt (222 km/h) |
| Service ceiling | 15,000 ft (4,572 m) |
| Optimum ceiling | 8,000 ft (2,438 m) |
| Rate of climb | 1,200 ft/min (6.1 m/s) |
| Engines | 1x General Electric T58 |
Curated by CatchFlights from manufacturer documents, ICAO Doc 8643 and reference works; values are left out where no source could confirm them. Sources are listed on our credits page.
