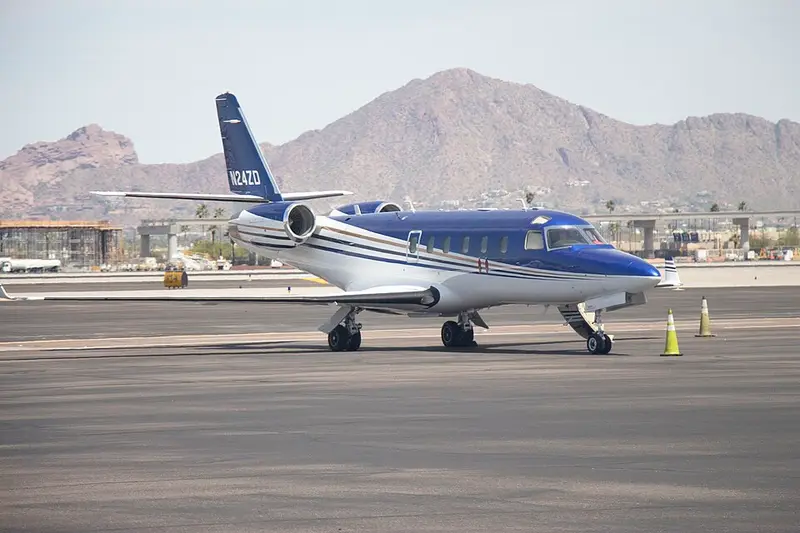

Iai 1125 Astra
The IAI Astra SP is an Israeli business jet that evolved from the Westwind family into a faster, more refined aircraft with a swept wing and modern cabin. It later became the basis for the Gulfstream G100 after Gulfstream acquired the programme. The Astra was known for strong climb performance and a relatively spacious cabin for its class. Its Israeli production history makes it an important link between the early Westwind and later Gulfstream light jets.
Did you know?
IAI's entire business-jet line, including the Astra, was eventually sold to Gulfstream, ending Israeli manufacture of the family it started.
Specifications
| Length | 16.9 m (56 ft) |
|---|---|
| Wingspan | 13.1 m (43 ft) |
| Height | 5.1 m (17 ft) |
| Maximum passengers | 9 |
| Crew | 2 |
| Maximum take-off weight | 10.6 t |
| Range | 2,900 NM (5,371 km) |
| Maximum speed | 470 kt (870 km/h) |
| Service ceiling | 45,000 ft (13,716 m) |
| Optimum ceiling | 39,000 ft (11,887 m) |
| Rate of climb | 3,500 ft/min (17.8 m/s) |
| Take-off distance | 1,600 m (5,249 ft) |
| Landing distance | 830 m (2,723 ft) |
| Fuel capacity | 5,400 l |
| Engines | 2x Honeywell TFE731-3C |
| Units built | 32 |
Curated by CatchFlights from manufacturer documents, ICAO Doc 8643 and reference works; values are left out where no source could confirm them. Sources are listed on our credits page.
