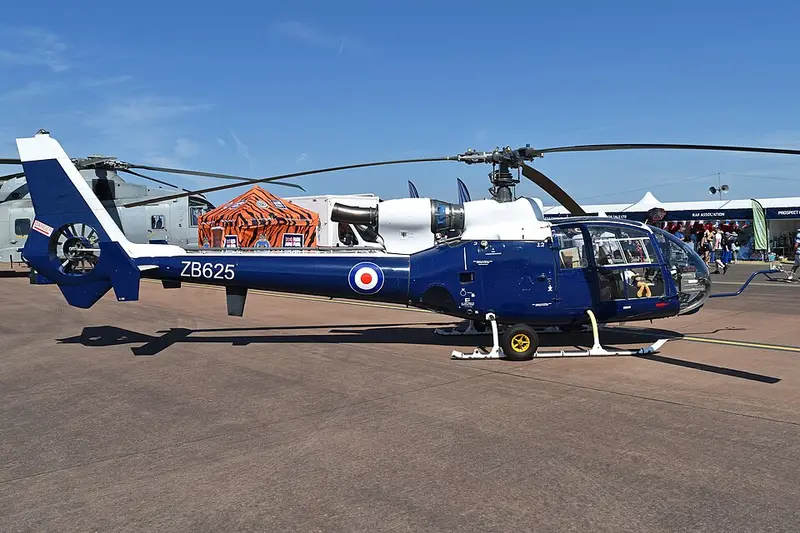

Aerospatiale Gazelle
The Gazelle was the first production helicopter to use a fenestron shrouded tail rotor instead of an exposed one, a feature that reduces noise and the risk of tail-rotor strikes on the ground. Powered by a single Turbomeca Astazou turboshaft, it entered French Army service in 1973 and was built in over 1,700 examples, including an anti-tank version, the SA 342M, armed with HOT missiles. British-built Westland Gazelles and Yugoslav SOKO-built examples extended its reach beyond France. It saw combat in the Falklands, Chad and the Gulf War.
_(53481427974).jpg){kind=link}
Did you know?
One of the first helicopters with a fenestron tail rotor, the Gazelle set the template Airbus Helicopters still builds on today.
Specifications
| Length | 9.5 m (31 ft) |
|---|---|
| Height | 3.2 m (10 ft) |
| Rotor diameter | 10.5 m (34 ft) |
| Maximum passengers | 4 |
| Persons on board | 5 |
| Maximum take-off weight | 1.8 t |
| Range | 361 NM (669 km) |
| Service ceiling | 16,400 ft (4,999 m) |
| Optimum ceiling | 8,000 ft (2,438 m) |
| Rate of climb | 1,770 ft/min (9 m/s) |
| Fuel capacity | 730 l |
| Engines | 1x Turbomeca Astazou |
| Units built | 1,700 |
Curated by CatchFlights from manufacturer documents, ICAO Doc 8643 and reference works; values are left out where no source could confirm them. Sources are listed on our credits page.
