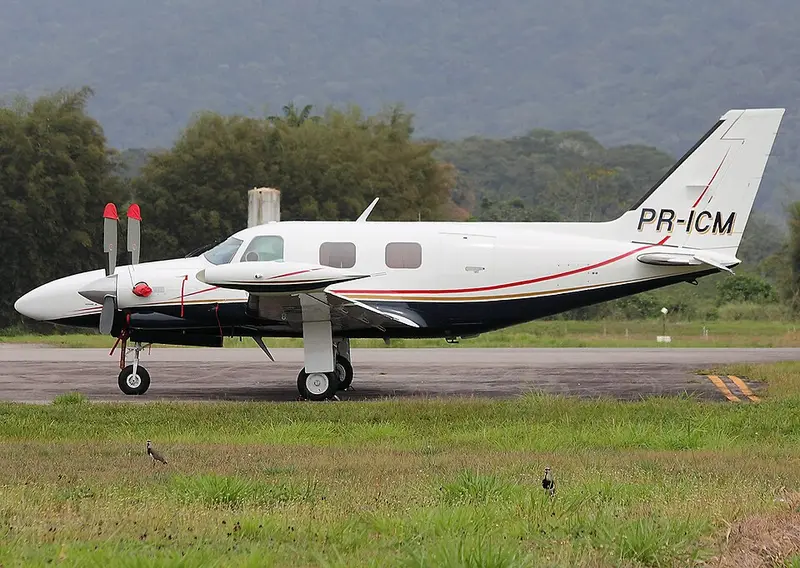

Piper PA-31T1-500 Cheyenne 1
The Piper Cheyenne I is a pressurised twin-turboprop executive aircraft developed from the Navajo family. Its two PT6 engines provided much better climb and cruise performance than piston twins while retaining a practical cabin. The Cheyenne line became a well-known bridge between light twins and business jets.
Did you know?
Wingtip fuel tanks, standard on the original Cheyenne, became optional equipment on the entry-level Cheyenne I to help hold down its price.
Specifications
| Length | 10.5 m (35 ft) |
|---|---|
| Wingspan | 13.1 m (43 ft) |
| Height | 3.9 m (13 ft) |
| Maximum passengers | 6 |
| Persons on board | 6 |
| Crew | 2 |
| Maximum take-off weight | 5 t |
| Range | 1,800 NM (3,334 km) |
| Maximum speed | 275 kt (509 km/h) |
| Stall speed | 72 kt (133 km/h) |
| Service ceiling | 31,000 ft (9,449 m) |
| Optimum ceiling | 26,000 ft (7,925 m) |
| Rate of climb | 1,750 ft/min (8.9 m/s) |
| Take-off distance | 436 m (1,430 ft) |
| Landing distance | 700 m (2,297 ft) |
| Fuel capacity | 1,200 l |
| Engines | 2x Pratt & Whitney Canada PT6A-28 |
| Units built | 189 |
Curated by CatchFlights from manufacturer documents, ICAO Doc 8643 and reference works; values are left out where no source could confirm them. Sources are listed on our credits page.
