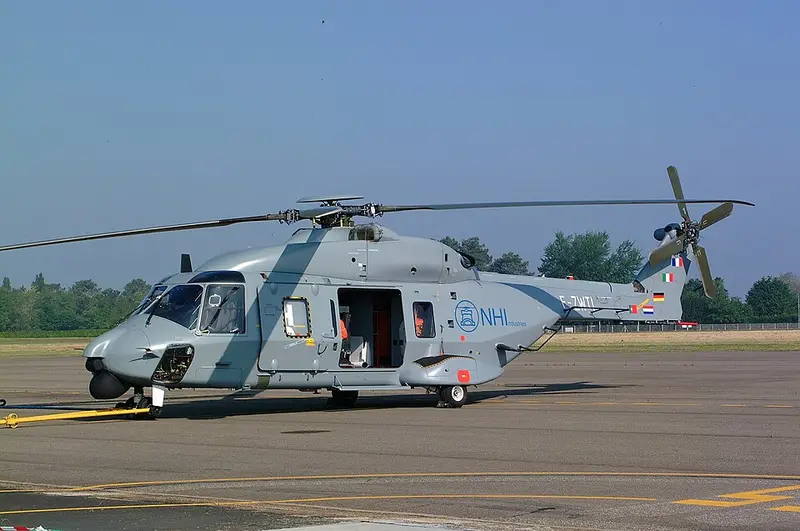

Nhi NH-90
The NHIndustries NH90 is a medium multirole military helicopter developed jointly by France, Germany, Italy, and the Netherlands, built with an entirely composite airframe and one of the first fully fly-by-wire flight control systems fitted to a production helicopter. Its composite fuselage resists corrosion far better than a metal airframe, a real advantage for the naval and maritime versions that spend much of their working life around salt water. It's built in two main variants, a tactical troop-transport version and a navalised anti-submarine and utility version with a folding tail and rotor for shipboard storage. It has become the standard modern military helicopter across much of Western Europe, replacing a wide range of older Cold War-era types.
.jpg){kind=link}
Did you know?
The tactical NH90 TTH loads small vehicles through a rear ramp rather than side doors only, unusual among helicopters its size.
Specifications
| Length | 16.1 m (53 ft) |
|---|---|
| Height | 5.4 m (18 ft) |
| Rotor diameter | 16.3 m (53 ft) |
| Maximum passengers | 20 |
| Persons on board | 24 |
| Maximum take-off weight | 9.1 t |
| Range | 450 NM (833 km) |
| Service ceiling | 20,000 ft (6,096 m) |
| Optimum ceiling | 8,000 ft (2,438 m) |
| Rate of climb | 1,575 ft/min (8 m/s) |
| Fuel capacity | 2,500 l |
| Engines | 2x Safran RTM322 or GE T700 |
| Units built | 525 |
Curated by CatchFlights from manufacturer documents, ICAO Doc 8643 and reference works; values are left out where no source could confirm them. Sources are listed on our credits page.
